Hardware And Harnesses DMM Revolver Rig Connector

The Revolver Rig Connector is a featherweight connecter with a pulley wheel to reduce friction, a removable captive bar, and full-strength becket. The Revolver Rig Twin Connector offers the same capabilities as the Revolver Rig, simply adding another integrated pulley for the dual effect.  Both connectors are offered with a Screwgate, Locksafe, and Durolock option.

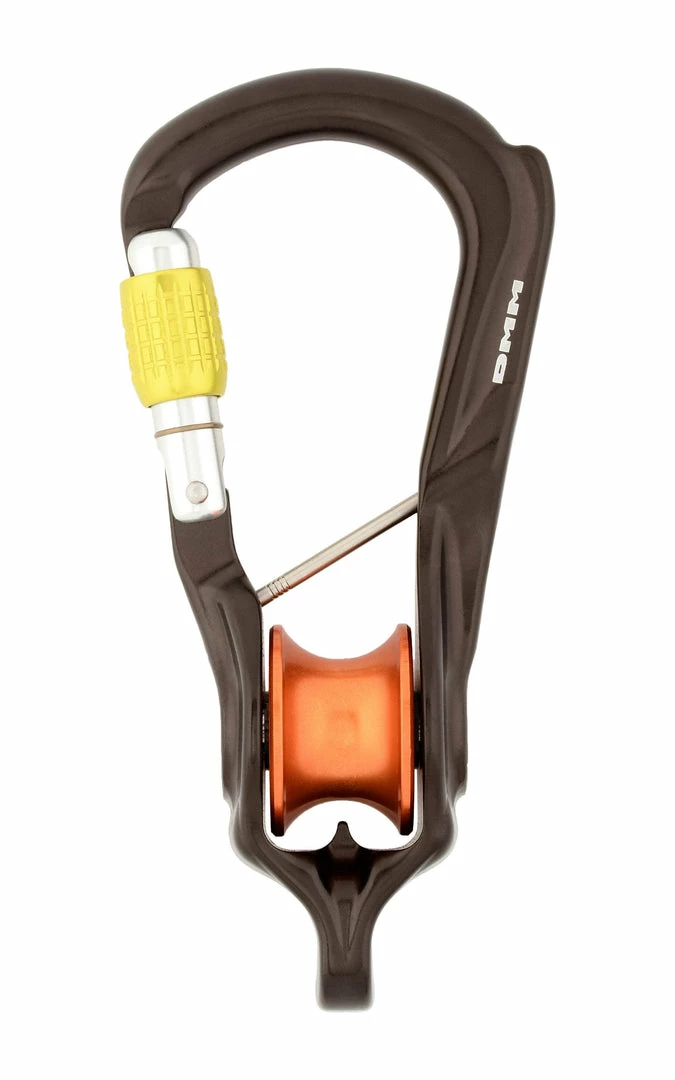

Revolver Rig Screwgate Carabiner has a manual locking gate that requires screwing/unscrewing of the barrel to lock/unlock.

Specifications

• Major Axis: 25kN
• Gate Opening: 23mm
• Weight: 196g
• Dimensions: 75mm x 161mm
• Certification: EN362:2004 B/T, EN12278:2007

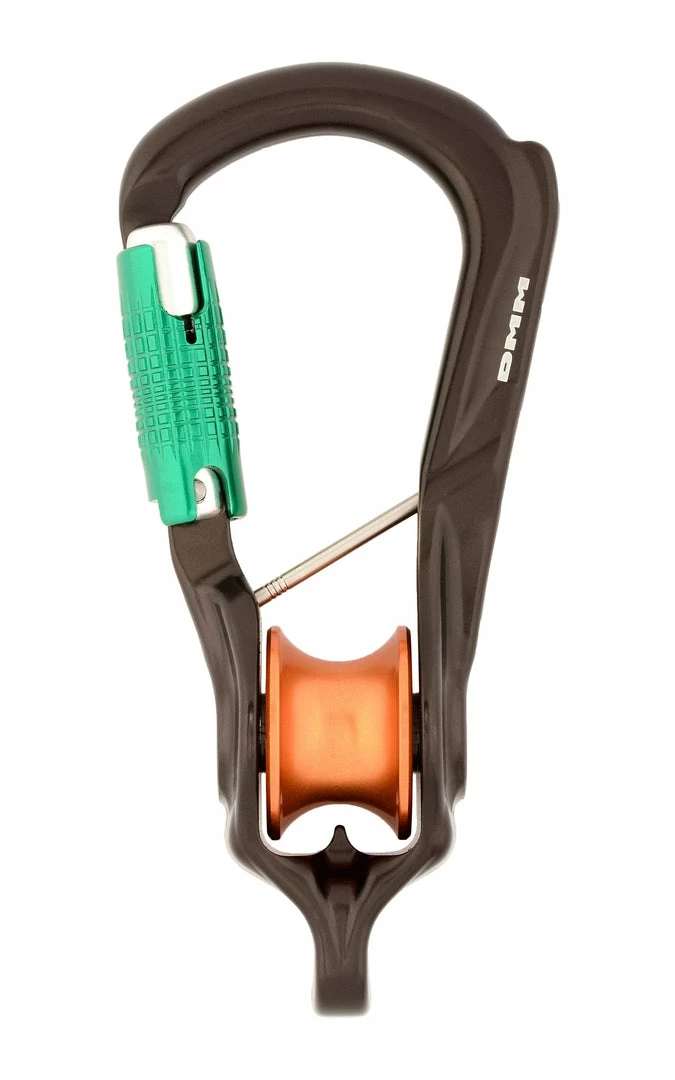

Revolver Locksafe Carabiners have an auto-locking gate that requires three distinct actions to open.

Specifications

• Major Axis: 25kN
• Gate Opening: 22mm
• Weight: 203g
• Dimensions: 75mm x 161mm
• Certification: EN362:2004 B/T, EN12278:2007

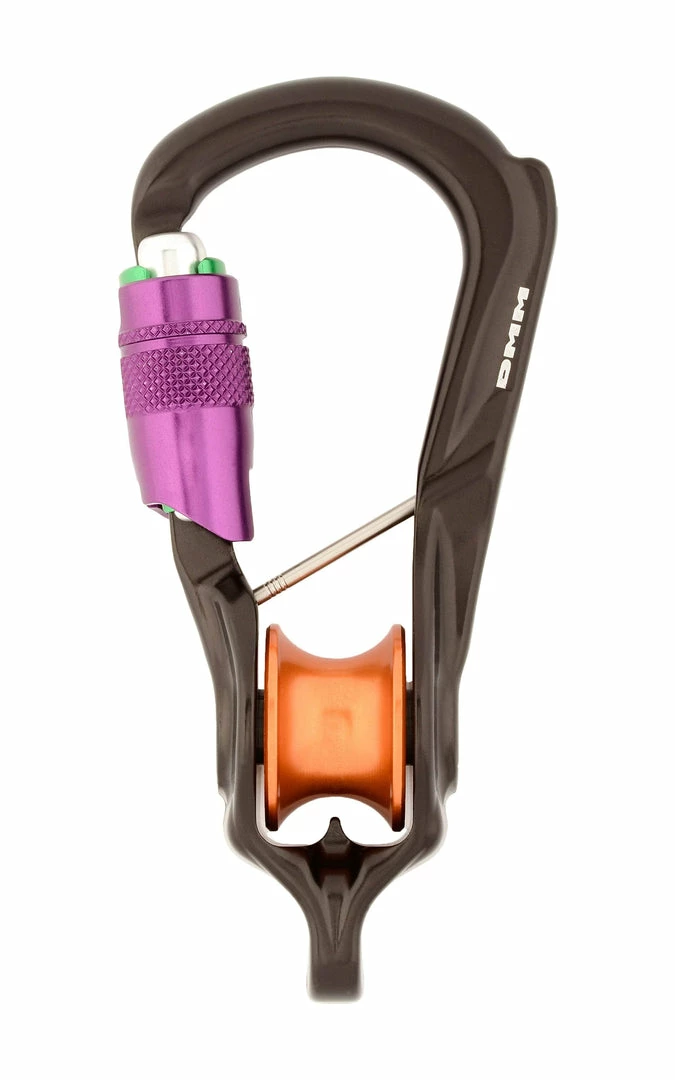

Revolver Durolock Carabiner has an auto-locking gate that requires four distinct operations to open.

Specifications

• Major Axis: 25kN
• Gate Opening: 22mm
• Weight: 213g
• Dimensions: 75mm x 161mm
• Certification: EN362:2004 B/T, EN12278:2007

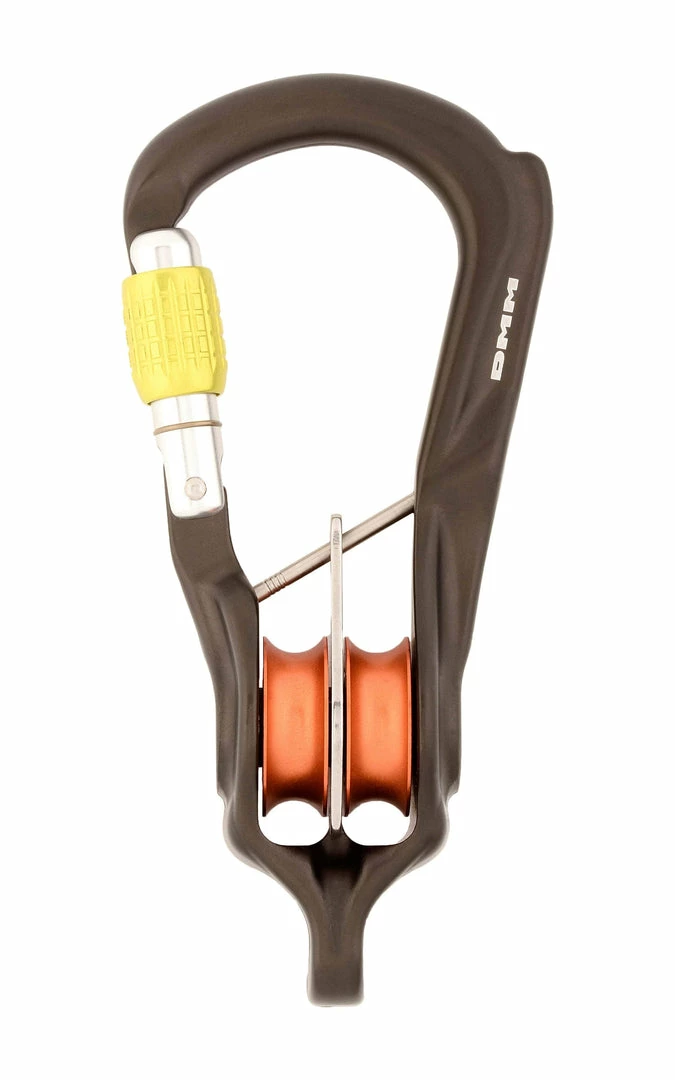

Revolver Rig Twin Screwgate

Specifications

• Major Axis: 25kN
• Gate Opening: 23mm
• Weight: 212g
• Dimensions: 75mm x 161mm
• Certification: EN362:2004 T, EN12278:2007

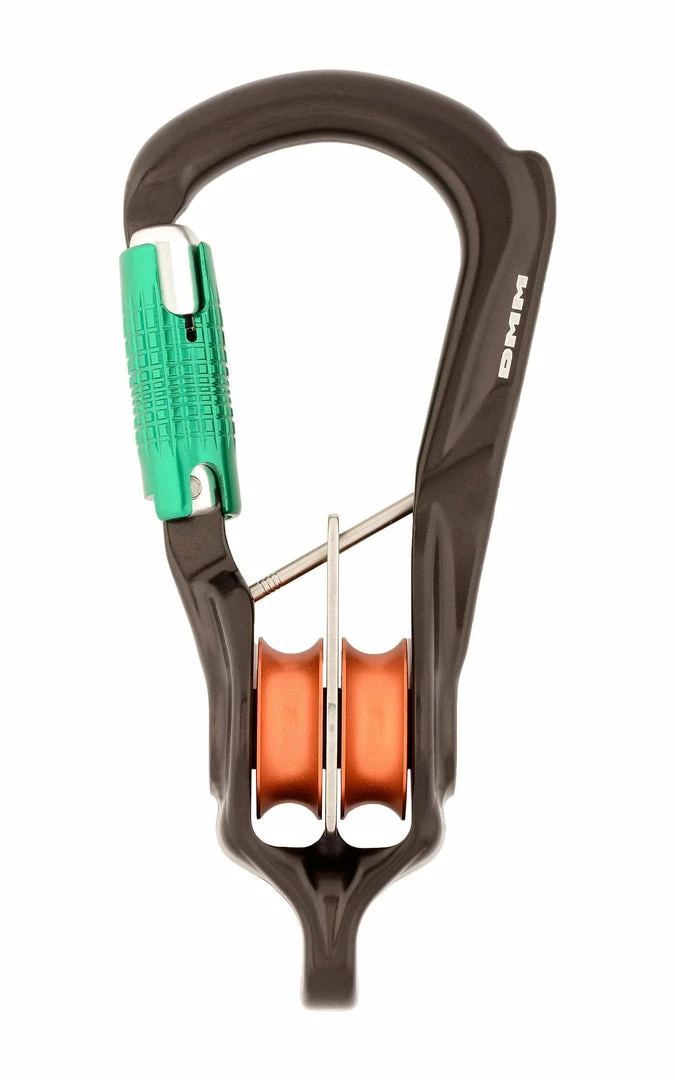

Revolver Rig Twin Locksafe

Specifications

• Major Axis: 25kN
• Gate Opening: 22mm
• Weight: 219g
• Dimensions: 75mm x 161mm
• Certification: EN362:2004 B/T, EN12278:2007

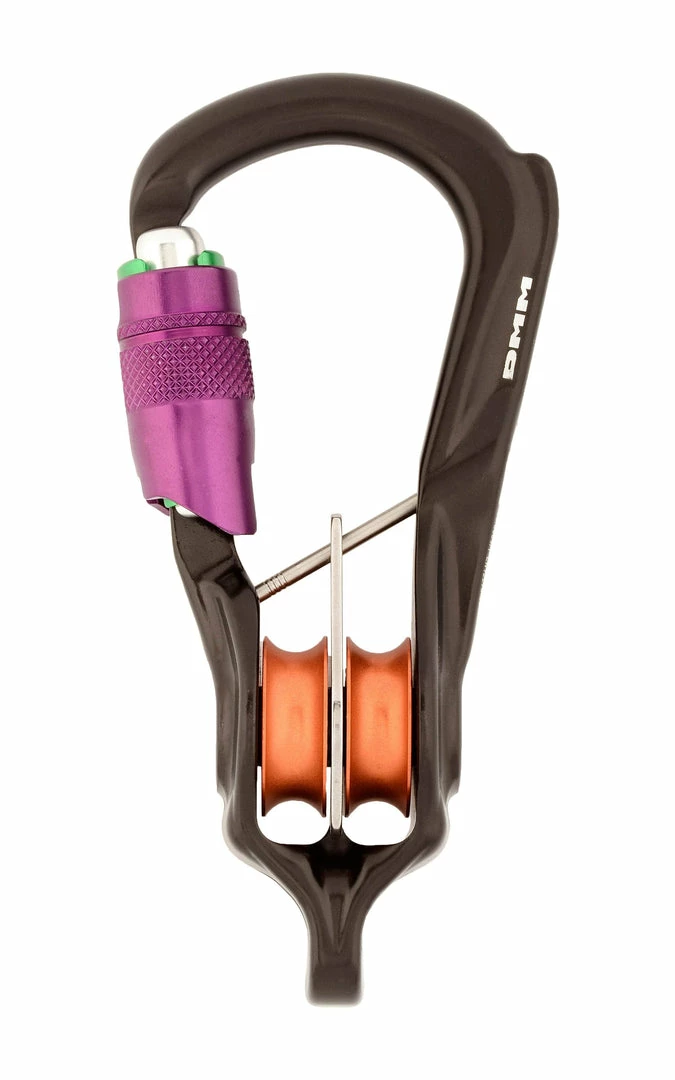

Revolver Rig Twin Durolock

Specifications

• Major Axis: 25kN
• Gate Opening: 21mm
• Weight: 226g
• Dimensions: 75mm x 161mm
• Certification: EN362:2004 T, EN12278:2007

Features

• Large sheave tread diameter for large bend radius
• High efficiency roller bearings
• Full strength becket accepts most carabiners or direct textile connection
• Removable captive bar
• DMM iD optional
• Keylock nose for snag free operation
• Uniquely profiled spine to aid correct orientation

Documents

Revolver Rig User Instructions (EN, FR, DE, IT, ES, PT, NL, NO, SV, FI, DK, PL, CZ, SK)

Revolver Rig User Instructions (SL, BG, HU, RO, ET, LV, LT, EL)

A58 XXX EU Declaration of Conformity

Revolver Rig Product Information Sheet

//
