Hardware And Harnesses DMM Revolver Carabiner

The Revolver Carabiner is a featherweight connecter with a pulley wheel to reduce friction.  Offered with a Screwgate, Kwiklock, and Locksafe option.

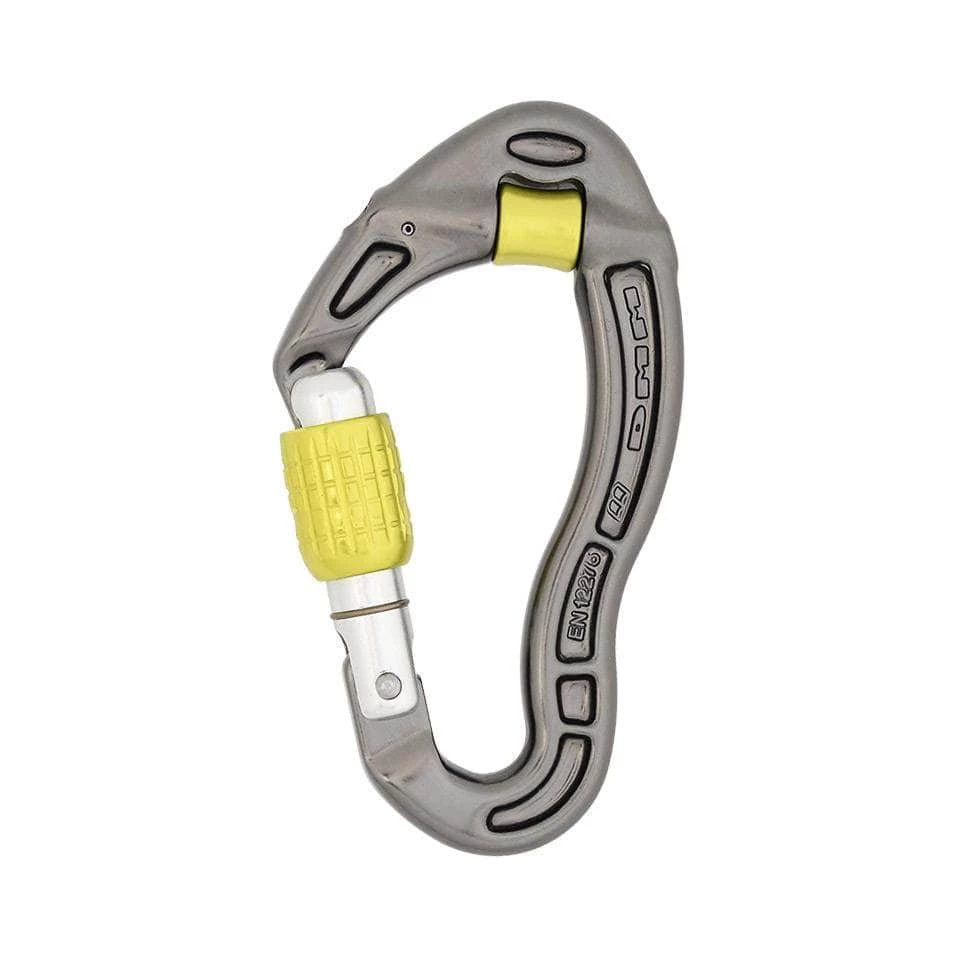

Revolver Screwgate Carabiner has a manual locking gate that requires screwing/unscrewing of the barrel to lock/unlock.

Specifications

• Major Axis: 24kN
• Gate Opening: 16mm
• Weight: 63g
• Dimensions: 60mm x 109mm
• Certifications: EN362:2004 B, EN12275:2013 B, UIAA121:2009

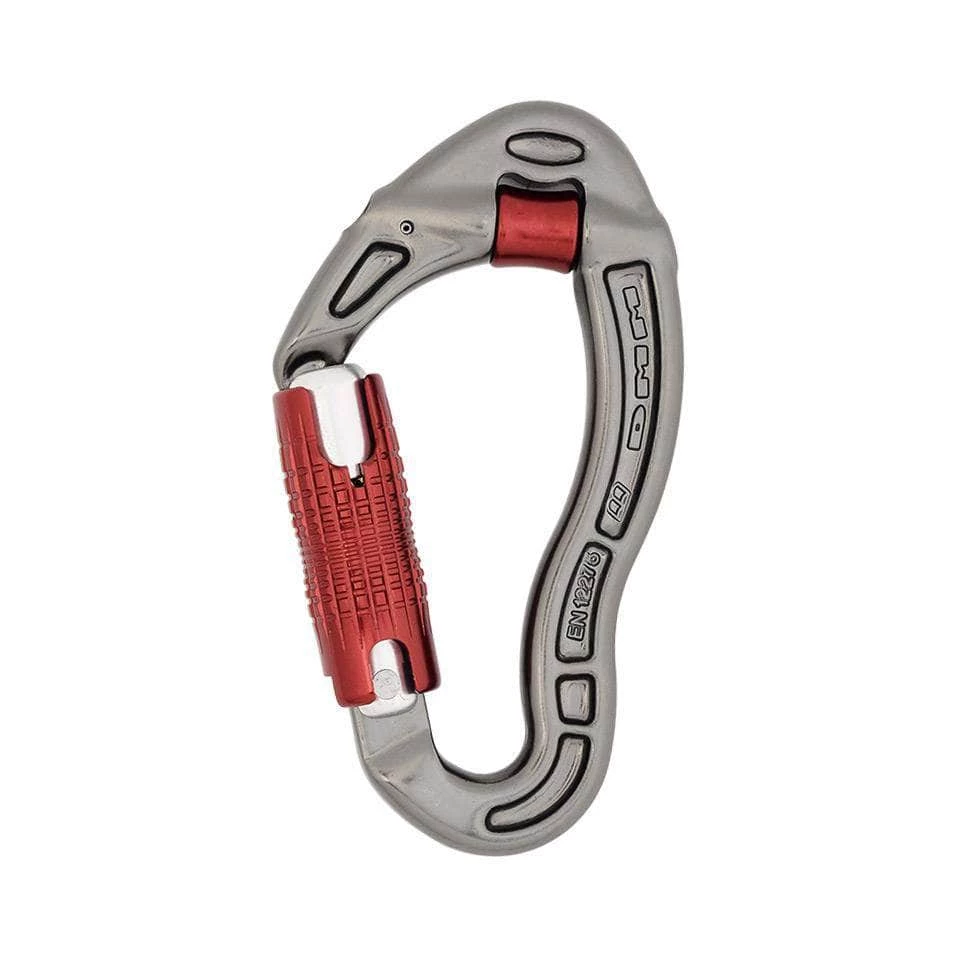

Revolver Kwiklock Carabiners have an auto-locking gate that requires two distinct actions to open.

Specifications

• Major Axis: 24kN
• Gate Opening: 15mm
• Weight: 69g
• Dimensions: 60mm x 109mm
• Certifications: EN362:2004 B, EN12275:2013 B, UIAA121:2009

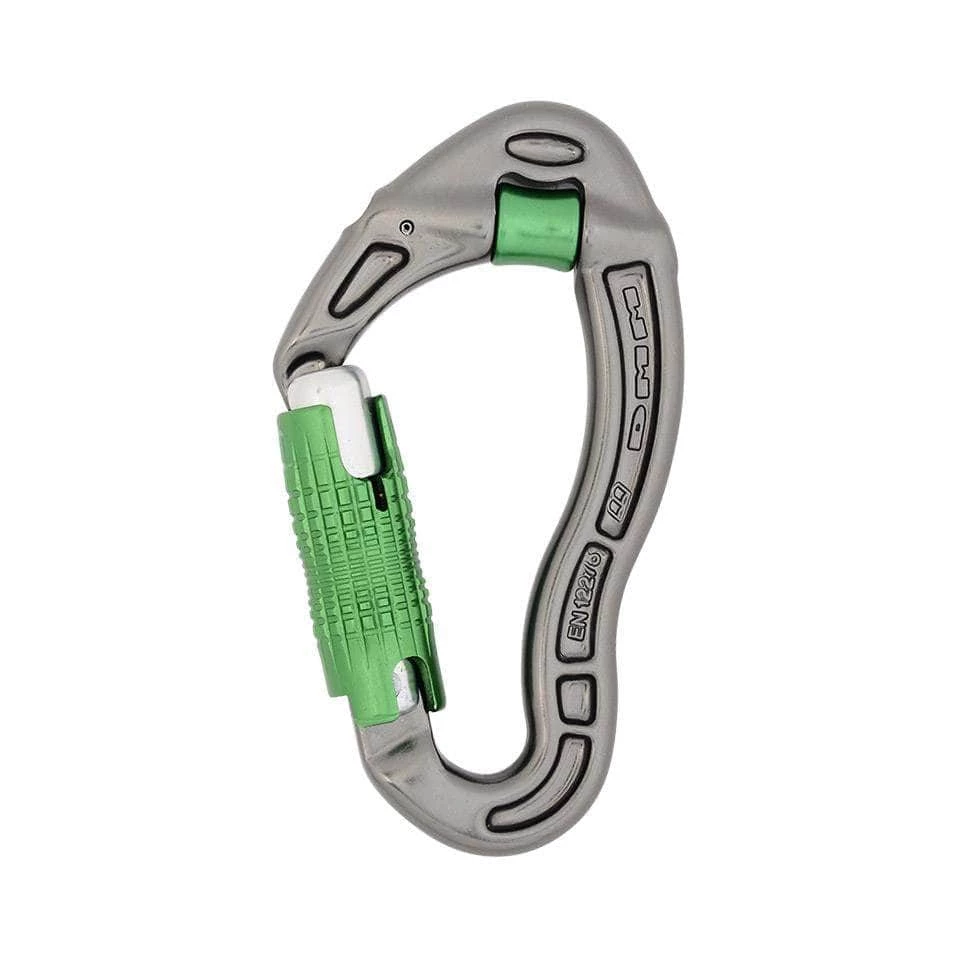

Revolver Locksafe Carabiners have an auto-locking gate that requires three distinct actions to open.

Specifications

• Major Axis: 24kN
• Gate Opening: 15mm
• Weight: 70g
• Dimensions: 60mm x 109mm
• Certifications:  EN362:2004 B, EN12275:2013 B, UIAA121:2009

Features

Unique connector incorporates low friction roller system

Recommended for special applications such as rescue and hoisting

Keylock clean nose for snag free connection
DMM’s patented Taperlock closing mechanism increases gate push-in and cross gate strength using a special flared profile on the nose of the carabiner, as well as allowing a snag free connection for your ropes, slings and devices.

Documents

Revolver User Instructions (EN, FR, DE, IT, ES, PT, NL, NO, SV, FI, DK, PL, CZ, SK)

Revolver User Instructions (SL, BG, HU, RO, ET, LV, LT, EL)

A272 XXX EU Declaration of Conformity

A273 XXX EU Declaration of Conformity

A277 XXX EU Declaration of Conformity

//
//
