DMM Pinto Pulley

The Pinto and Pinto Rig Pulley are full of curves!  Both allow you to increase rigging options without losing effectiveness, and the strength amplifies efficiency while working ropes.  The Pinto Rig Pulley can manage ropes up to 16mm.

The Pinto and Pinto Rig Spacer are a vital component to the Pinto Pulley’s, designed exclusively for their ability to prevent the side plates from being compressed while running cordage.  The interior hole can accommodate ropes up to 14mm.

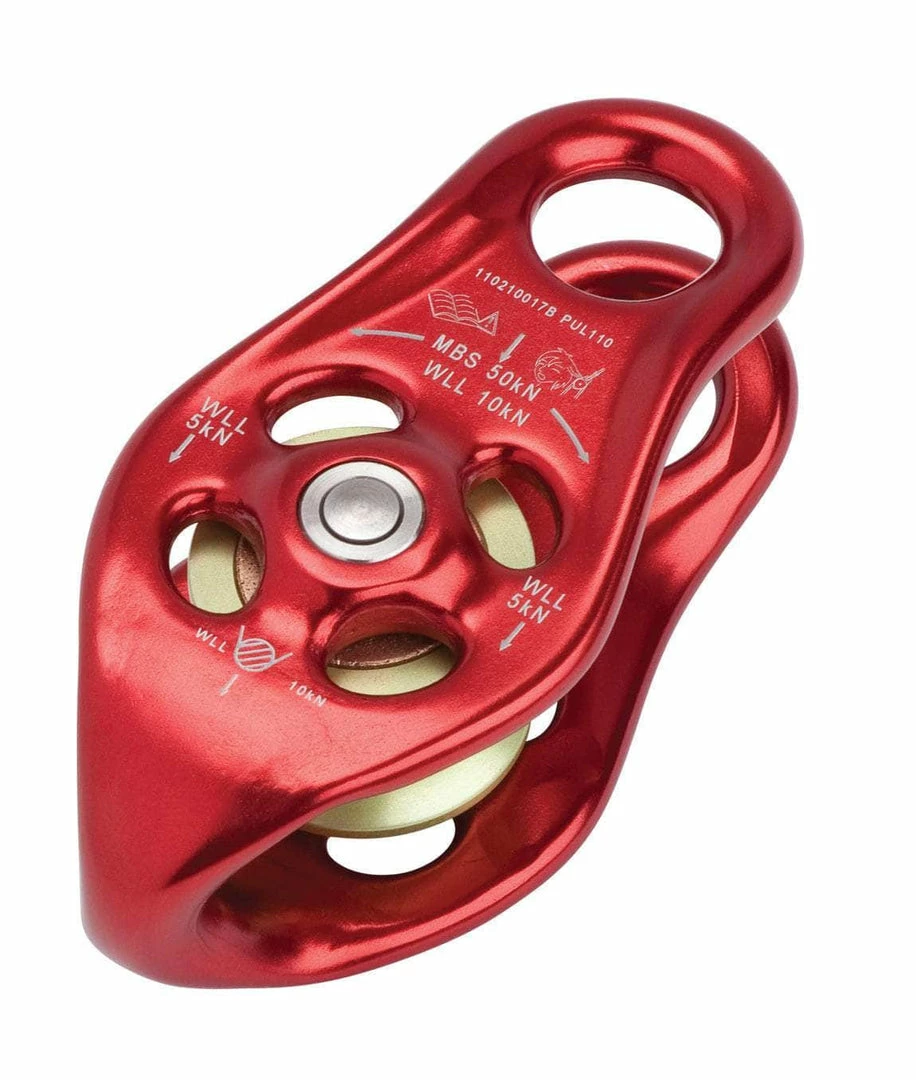

Pinto Pulley Specifications

• Major Axis: 50kN
• Weight: 114g
• Dimensions: 90mm x 43mm x 32mm
• Certifications: EN12278:2007, NFPA 1983 (2017ED) G

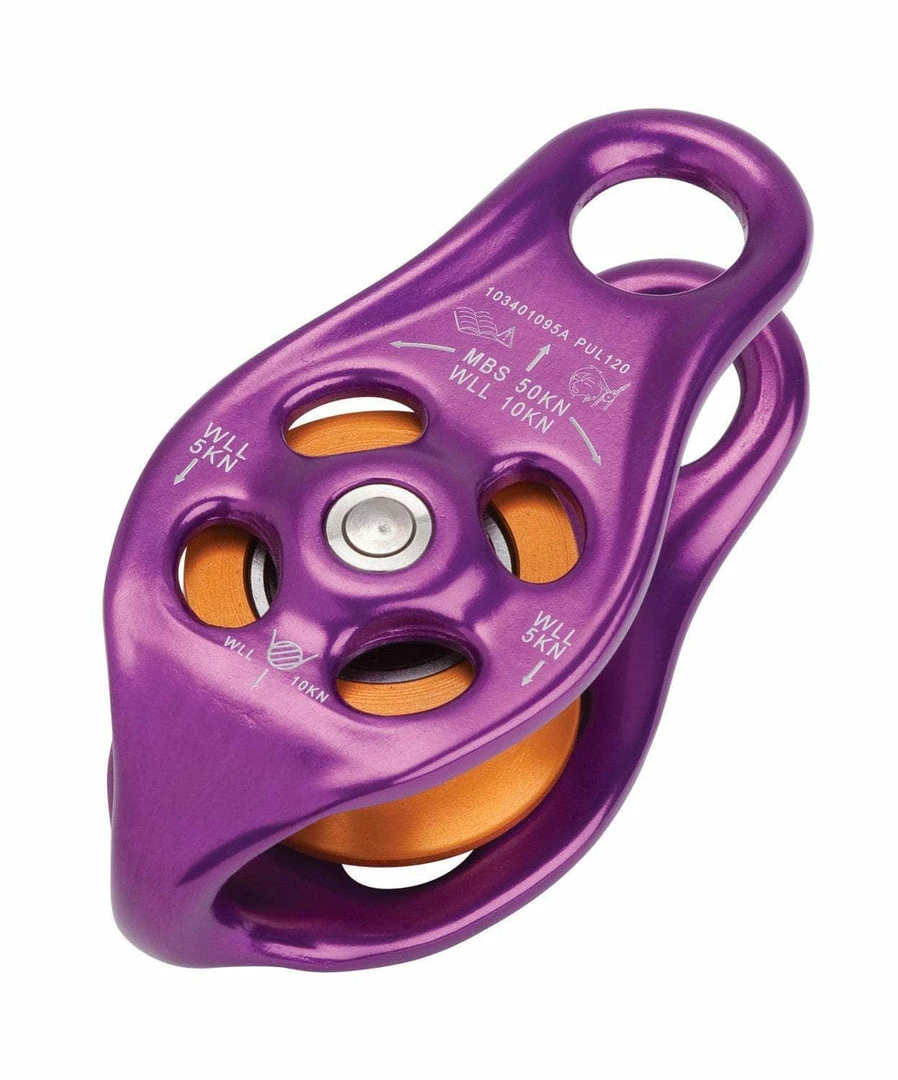

Pinto Rig Pulley Specifications

• Major Axis: 50kN
• Weight: 162g
• Dimensions: 100mm x 48mm x 37mm
• Certifications: EN12278:2007, NFPA 1983 (2017ED) G

Documents

Pinto Pulley User Instructions (EN, FR, DE, IT, ES, PT, NL, NO, SV, FI, DK, PL, CZ, SK)

Pinto Pulley User Instructions (SL, BG, HU, RO, ET, LV, LT, EL)

PUL110 XXX EU Declaration of Conformity
